DIY filament extruder kit for making filament from raw or used material for 3D printing

This post is a quick summary of the v1 version extruder made for making filament from raw or used material for 3D printing.

Info. about the v2 version with more powerful motor can be found at
http://wei48221.blogspot.tw/2016/10/filament-extruder-v2.html.

The extruder can be operated horizontally or vertically.

Horizontal Operation


Vertical Operation

Control Box (newly added since 2016/10/17)

The kit comes with a laser cut plywood box that houses the PID, SSR, Motor Speed Controller and the switches and connectors.

Front View

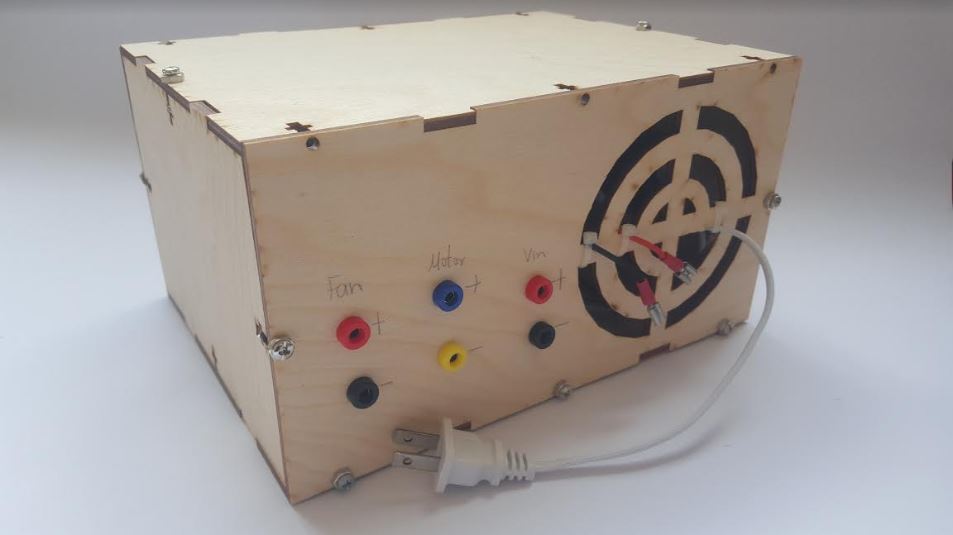

Rear View

Side View

The box is shipped in 6 laser cut pieces.


Specifications

Extruder Nozzle Size: 2.8mm / 1.5mm;

Max. Extrusion Temp.: Over 400 degree C;

Extruder Heat Source: AC 110V Heat Band;

Extruder Temp. Control: PID + SSR;

Filament Cooling: Air Cool (via cooling fan);

Motor: DC 12V Gear Motor (3.5 RPM (No Load));

Optional Accessories (sold separately from the extruder kit)

Filament Spool Winder

This machine winds the extruded filament onto a spool automatically. The flexible roller wheel design make it easy to for this machine to support spool of different width and center hole dimension.


Filament Spreader

This machine spreads the extruded filament evenly unto a spool.



Working together (Filament Spool Winder + Filament Spreader).


For more info. on Filament Spool Winder and Filament Spreader, please visit the link below.
http://wei48221.blogspot.tw/2016/08/filament-winder-and-filament-spreader_6.html

How to buy

I am offering this extruder as a kit that contains the materials needed to make this extruder except for the user supplied items mentioned below. If you are interested in buying the kit or have any questions, please feel free to leave your message in the comment section below.

- Price of the kit: US$300/ea

- Shipping: Free shipping to most major countries worldwide. Please contact me to see if free shipping is applicable to your location.

- Tax and tariffs: To be paid by the buyer.

- Item Location: Taipei, Taiwan.

User supply items:

- A 12V, 30A DC Power Supply;

- A 3D Printer with 20cm x 20cm x 20cm printing envelop (for printing the Horizontal Hopper and the Horizontal Hopper Base for horizontal operation or the Vertical Hopper Base for vertical operation), the STL files will be provided;

- 18 AWG stranded copper wires (red, black, yellow, blue) - the length of the wire is depending upon how you arrange the extruder, power supply, and the control unit. (for my case, 3 meters / ea should be more than enough);

- Power sockets and plugs;

- Basic hand tools (wire cutter, screw drivers, pliers, etc.);

- Solder, Soldering Iron, Solder Paste.

Note,

As the characteristics of material vary significantly, care must be taken to work out the optimal extrusion conditions (extrusion temperature, extrusion speed, pressure inside hopper, etc.) to achieve the desire result.

Warning!!

- This machine must be operated in a well ventilated area and be attended by an operator constantly to minimize hazards (fire, toxic fumes, etc.).

--------------------------------------------------------------------------------------------------------------------------

In addition to the extruder kit, here is a list of the accessories and materials that are available from me for making your own filament or for recycling used material.

Accessories

To be added

Material

PETG pellets

Eastman Drystar 0603: US$8 / KG.
